cavity wall insulation (cwi)
Description:
AFICO Cavity Wall Insulation is composed of fine, stable and uniformly textured inorganic glass fibers bonded together by non-water soluble, fire-retardant thermosetting and heat resistant resin. It is then formed into semi-rigid non-combustible and moisture repellent rectangular boards or slabs. The Cavity Wall Insulation is free from coarse fibers and shot due to its mineral composition.
Application:
Cavity Wall Insulation is a semi-rigid board intended for use in commercial, institutional, industrial, agricultural and residential construction as thermal and acoustical insulation for interior, exterior and partial or fully cavity wall applications as well as in poultry farms precast structures, prefabricated houses and new residential villa construction.
Facing:

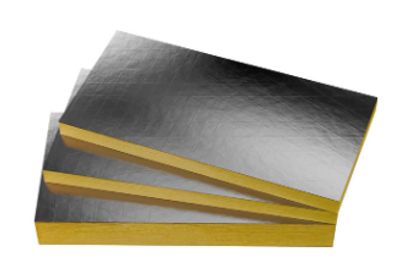

AFICO Cavity Wall Insulation is available either unfaced with a silicon-based emulsion additive in the wool to make the product water-repellent, or with a factory-applied KRAFT vapor barrier facing or with an Aluminum Foil Fiberglass Reinforced Kraft Paper (FRK) facing.
Thermal Resistance “R” Value (ASTM C518):
“R” is a measure of the resistance to heat flow of a material of any given thickness. (“R” = m². °K/W or hr. ft². °F/Btu) R = T Where “T”= Thickness K Where “K” or “λ “ = Thermal Conductivity.
Thermal Resistance “U” Value (ASTM C168):
“U” is a measure of how much heat is lost through a given thickness of a particular material. (“U” = W/m². °C or Btu/hr. ft². °F)
U = 1 Where “1”= Total Thermal Resistance Rt Composed of all elements/layers.
U-Values are calculated from the thermal resistances of the parts making up a particular part of the structure. Transmission of heat is opposed in varying amounts dependent on material and surface.
U-Value (of building element) = 1 / (Rso+Rsi R1+Rs...)
Where Rso is the fixed external resistance Rsi is the fixed internal resistance R1, R2 etc are resistivity of all elements within the application including that of cavities within the construction.
Surface Burning Characteristics (ASTM E84, UL723):
Base glass fiber is non-combustible when tested to ASTM E 84.
Thermal Transmittance (U Value):
Thermal transmittance is the rate of heat flow through unit area of a wall system when unit temperature difference exists between air on each side of the structure.
The “U” Value of typical Cavity Wall Construction is the reciprocal of the sum of the resistances of the component parts of the structure plus the resistance of the surfaces and any cavities within.
Standard Nominal Density:
Standard Density is 26-48 kg/m³ (1.6 -3.0 lbs/ft³.
Specification Compliance:
AFICO Cavity Wall Insulation complies with the property requirements of the following specifications:
DCL: ASTM C612.
CE-EN: EN 13162-T4-WS.WL(P)1121-CPD - BA0136.
UL 723: Classified as FHC 25/50 File no R37968.
SCS: Recycled Content Certified SCS-MC-02811.
ASTM C795: Thermal Insulation for Use in Contact with Austenitic Stainless Steel tested.
SASO: SASO GSO EN 13162 License #201800652111.
Fire Properties:
B.S. 476 PART 4: Non-Combustible
B.S. 476 PART 5: Ignitability
B.S. 476 PART 6: Fire Propagation
B.S. 476 PART 7: Surface Spread of Flame
Class ‘O’ fire rating to the building regulations sections E15
Standard Available Products:
Nominal Manufacturing Specifications. Check for availability in other dimensions.
Apparent Thermal Conductivity ASTM C518, EN12667.
W/m.°K or Btu.in/hr.ft2.°F “K” or “λ” value at mean temperatures.
Data for 10°, 24° and 35°C mean temperature.
“U” value of typical AFICO Cavity Wall Insulation.
